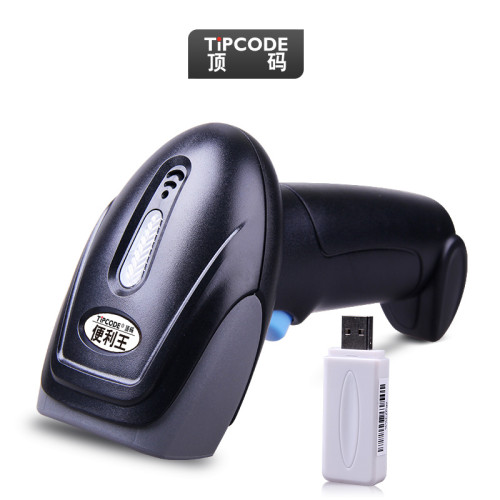

Tipcode TP10W 1D Wireless Barcode Scanner

Type : Handheld Scanner

Symbologies : 1D

Interface : USB

Scan Angle : ±30° Pitch, ±60° Tilt, 30° Roll

Dimensions (length x width x height) : 97mm x 67mm x 165mm

Unprecedented Comfort : the TipCode Glory of Kings Series introduces the concept of hand—feeling into the Bar Code Industry for the first time, leading the craze of hand-feeling, with innovative ergonomic design, comfortable and suitable for Long Operation

High-speed processing chip, super strong decoding

capability : high-speed 32bit decoding MCU, read fast

and accurately, and can scan all the mainstream

one-dimensional bar codes

Wireless connection : 2.46 two-way communication,

with strong anti-interference ability

Support for multiple languages : to meet the diverse needs of customers

Technical Specifications

Operating Current Maximum current 120mA Minimum current 50mA

Operating VoltageDC 5V ± 10%

Light source 632Nanometer Red LED

Sensor Linear CCD

Scan Rate 350:50 (scans/second)

Minimum resolution 0.10Zmm/4mil(PCS0.9)

Minimum Symbol Contrast >30%UPC/EAN 13(13mi|)

Curvature R215 mm(EAN8),R220 mm(EAN13)

R220 mm(EAN13)R220 mm(EAN13)

(resolution:0.26mm(PCS:0.9)

Compatibility WINDOWS/Mac OS/Linux/Android/IOS/Embedded OS

Drop Resistance 1.5 m (5.0 ft.) drops to concrete

Error rate 1/5,000,000

Decoding ability EAN13,EAN8,UPC A,UPC E,CODABAR(NW—7),

CODE 39,CODE 93,NTERLEAVED 2 OF 5,STANDARD

2 OF 5,MATRlX 2 OF 5,CODE128,EAN/UCC123,

CODE 11,CHlNA POST

Environmental-friendly Certification RoHS

Storage size 500 records of 13-digit barcode

Expected Charge Time 4.5 hours 4 hourS(continuous operating)

Battery capacity 1500mAh
